smart door lock with app
1.1 Product Description

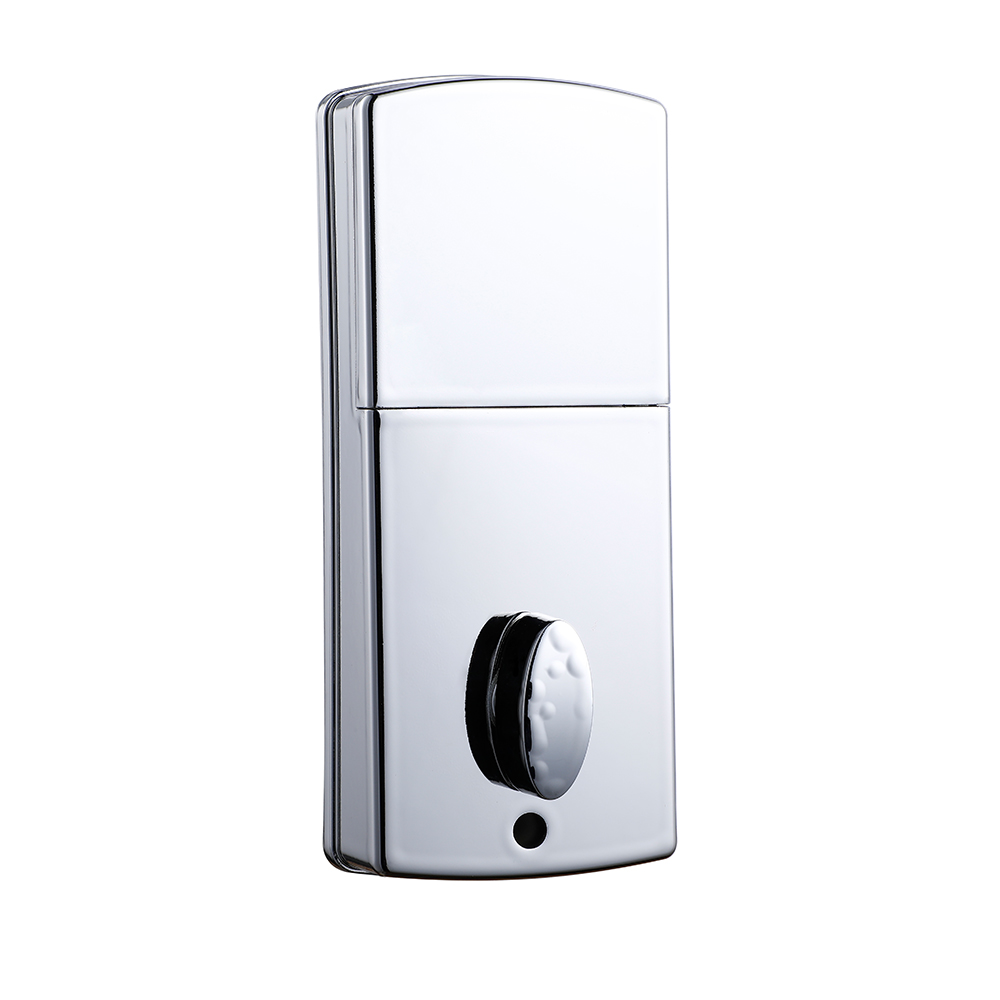

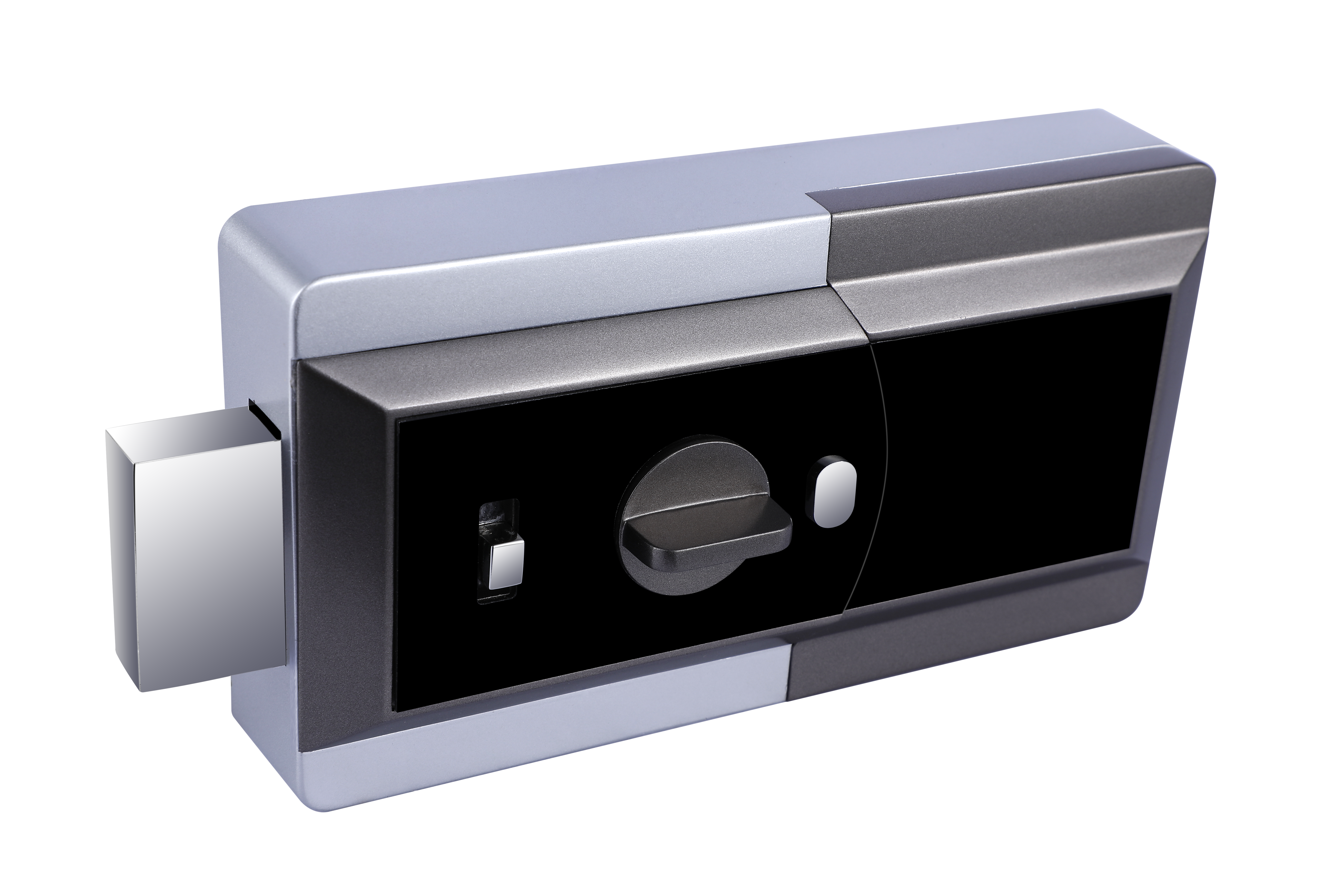

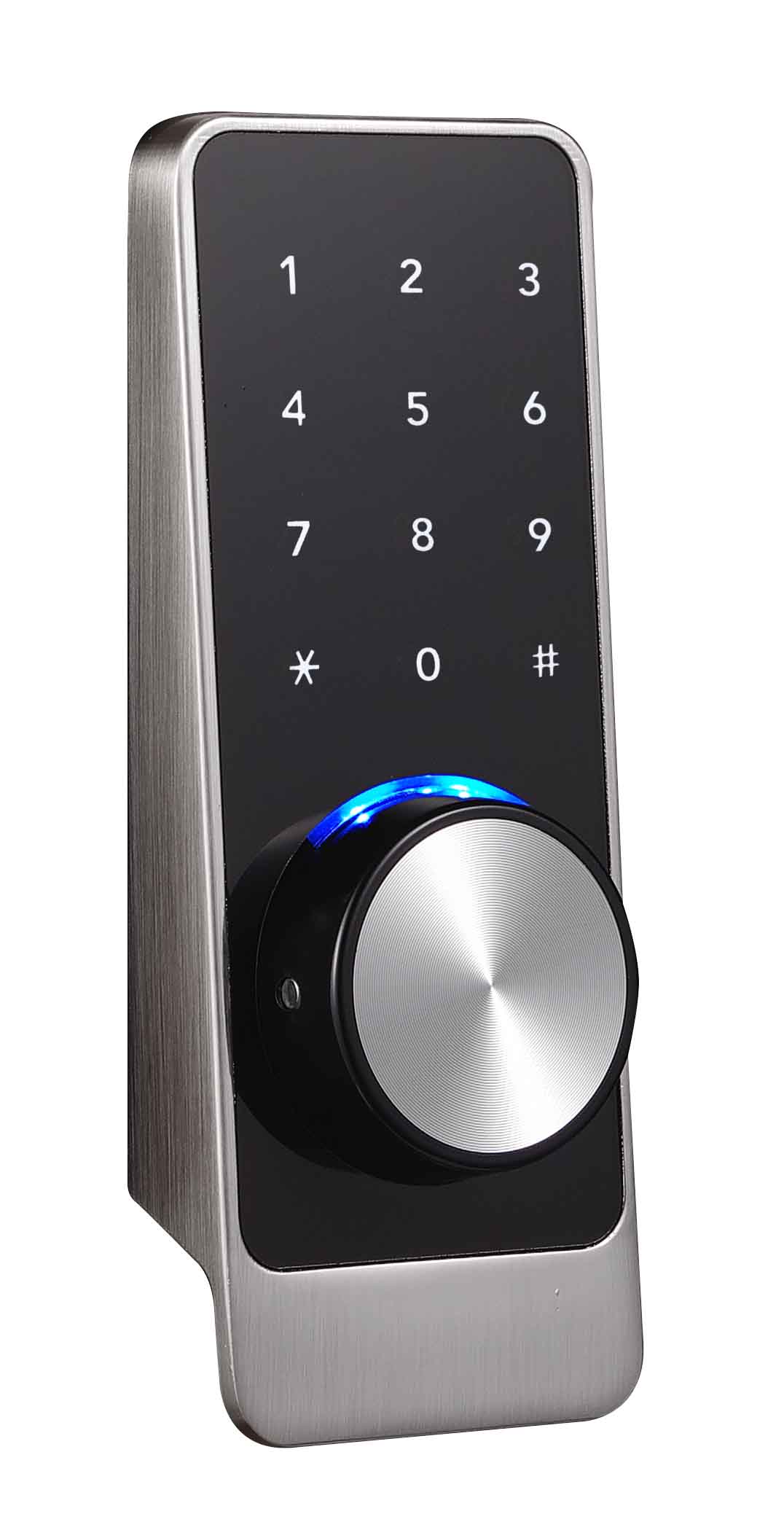

KN006 is a tilted-structure design with appearance patent, voice guide smart door lock. It provides 9 administrators and 291 users.
It has 3 ~ 4 unlock modes: password, inductive card, mobile phone app (ttlock )and emergency key.
The lock is suitable for and widely used in commercial office, residential, government departments,
army, banks, hospitals, etc.
The lock is for indoor use only.
Product Features
l Tilted structure design for better view and convenient operation;
l Audio (and menu) guide facilitates set up and operation;
l Replace mechanical cylindrical lock directly without drilling hole;
l Multiple Unlock modes: password/Mifare1 card/mobile phone App;
l Administrator/User add or delete adopt numbering management;
l Any numbers can be added before or after password to protect privacy;
l Passage mode makes the access convenient;
l Double locking by switch from inside secures privacy and security;
l Wrong password or illegal card alarm;
l Low voltage alarm;
l Access records( up to 700pcs) can be queried for monitoring;
l Emergency power back-up;
l Mechanical key override;
1.5 Technical Parameter
Power supply |
4.5 ~ 6.5V(4 pcs AA alkaline batteries) |
Alarm voltage |
4.8V ±0.2V |
Static current |
≤50µA |
Dynamic current |
≤250 mA |
Card(Mifare1 S50 card) |
≤300(9 administrator, 291 user) |
Password capacity |
≤300(9 administrator, 291 user) |
Password digit |
Within 6 ~ 12 digit |
Operating temperature |
-10 ~ 60℃ |
Operating humidity |
20 ~ 93%RH |
Door thickness |
35 ~ 50mm; |

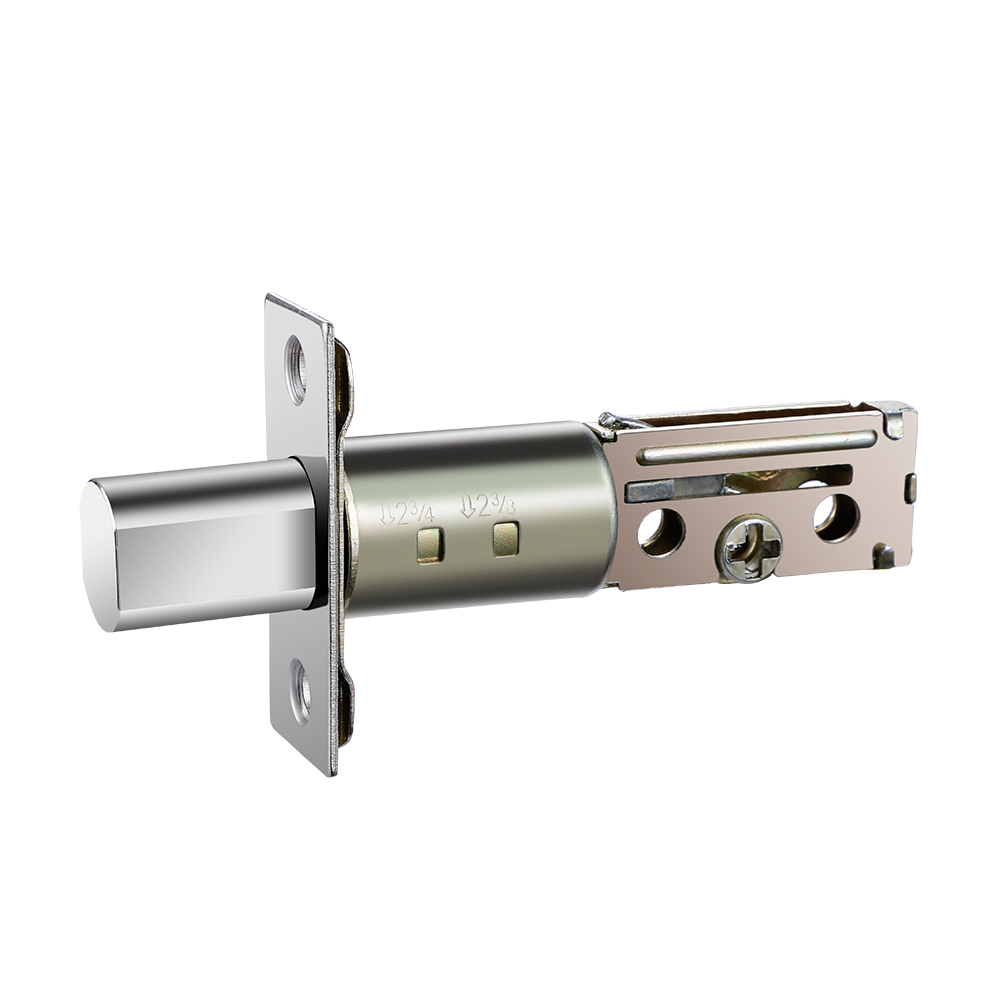

Backset |
Deadbolt 60mm and 70mm adjustable |
|
|
