LKWR1-MF Wireless Reader

USD

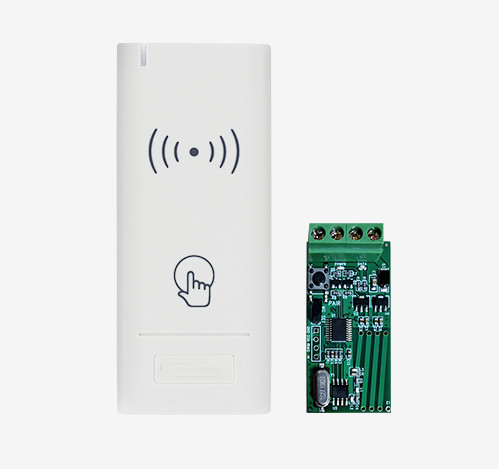

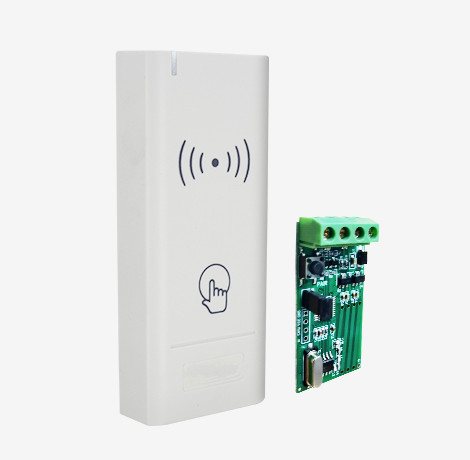

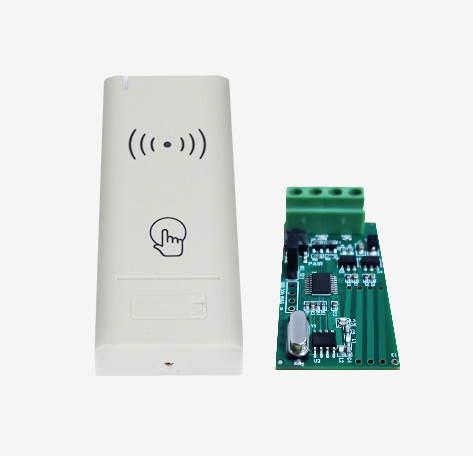

Wireless Reader

> 433MHz Rolling Code technology

> Card type: 13.56MHz Mifare card

> Programmable Wiegand output of the Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra low power consumption

> Waterproof, conforms to IP65

Wireless Reader	Card Type	13.56MHz Mifare card
	Operating Voltage	3 units of AAA batteries
	Idle Current Working Current	≤5uA ≤35mA
	Reading Distance	≤3cm
	Communication Frequency	433MHz
	Communication Distance	30m Maximum
	Operating Temperature	-20°C～+60°C (-4°F～+140°F)
	Operating Humidity	0%～86%
	Index of Protection	IP65
	Color	Black, White optional
	Dimensions	L120 * W50 * H20 (mm)
	Net Weight	88g
Receiver	Operating Voltage	12V DC
	Working Current	≤15mA
	Communication Frequency	433MHz
	Wiegand Output Format	26 bits Or 34 bits (Default is 26 bits)
	Operating Temperature	-20°C～+60°C (-4°F～+140°F)
	Operating Humidity	0%～86%
	Dimensions	L25 * W50 (mm)
	Net Weight	10g
