WK1 Wireless Keypad Only

USD

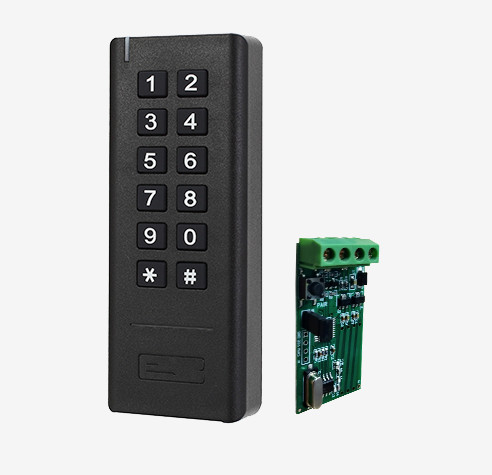

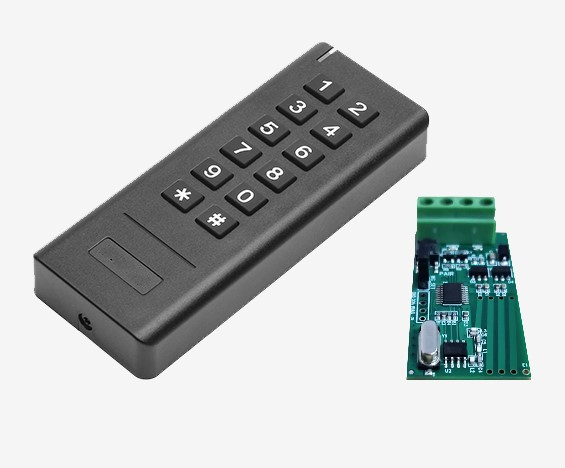

Wireless Keypad

> 433MHz Rolling Code technology

> PIN Length: 1-6 digits

> Programmable Wiegand output of the Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra low power consumption

Wireless Keypad	PIN Length	1-6 digits
	Operating Voltage	3 units of AAA batteries
	Idle Current Working Current	≤5uA ≤45mA
	Reading Distance	≤3cm
	Communication Frequency	433MHz
	Communication Distance	30m Maximum
	Operating Temperature	-20°C～+60°C (-4°F～+140°F)
	Operating Humidity	0%～86%
	Physical	ABS
	Dimensions	L134 * W55* H20 (mm)
	Net Weight	100g
Receiver	Operating Voltage	12V DC
	Working Current	≤15mA
	Communication Frequency	433MHz
	Wiegand Output Format	26 bits Or 34 bits (Default is 26 bits)
	Operating Temperature	-20°C～+60°C (-4°F～+140°F)
	Operating Humidity	0%～86%
	Dimensions	L25 * W50 (mm)
	Net Weight	10g
Wireless Button (Optional Accessory)	Operating Voltage	1unit of 2023 Lithium battery
	Idle Current Working Current	≤2uA ≤20mA
	Communication Frequency	433MHz
	Communication Distance	20m Maximum
