> Waterproof, conforms to IP65 (Wireless Keypad)
> Communication frequency: 433MHz
> 600 PIN / card users (100 visitor users + 500 common users)
> 13.56MHz Mifare Card
> PIN length: 4~8 digits
> Communication distance: 50m Max
> Door contact, alarm and door bell output
> Backlit keypad
> Pulse mode, toggle mode
> Tri-color LED status display
> Ultra low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA)

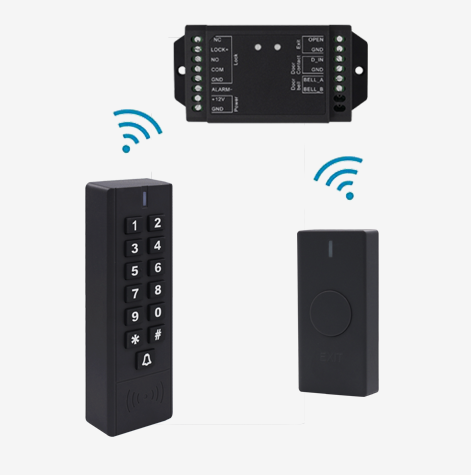

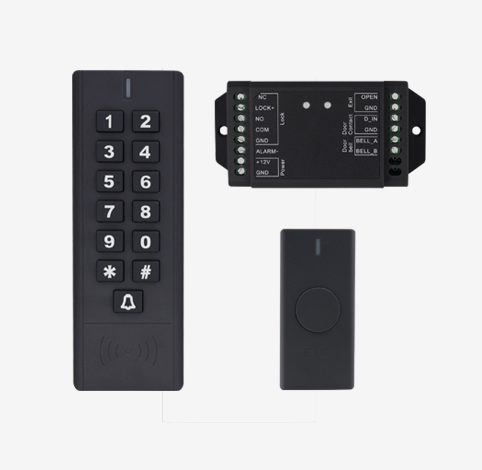

> Supports integrate 1 keypad and 1 exit button, or 2 keypads
|
User Capacity
PIN Length
Card Type
|
600 PIN / card users
(500 common users + 100 visitor users)
4~8 Digits
13.56Mhz Mifare Card
|
|
Operating Voltage
Wireless Keypad
Mini Controller
Wireless Exit Button
|

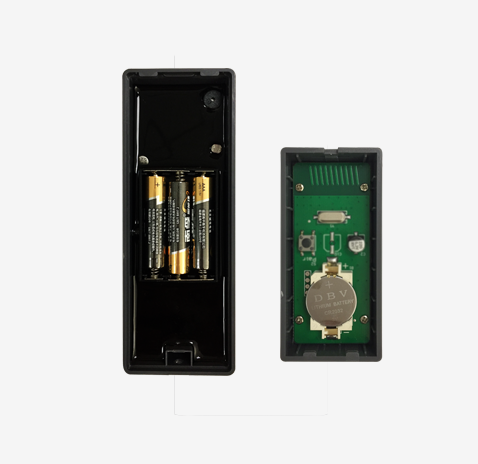

3units of AAA batteries
12V DC
2032 Lithium battery
|
|
Current
Idle Current
Working Current
|
Wireless Keypad: <10uA
Mini Controller: <20Ma
Wireless Exit Button: <10uA
Wireless Keypad: <80mA;
Mini Controller: <50mA
Wireless Exit Button: <30uA
|
|
Communication Frequency
|
433MHz
|
|
Communication Distance
|
50m Maximum
|
|
Relay Contact Load
|
2Amp Maximum
|
|
Environment
Operating Temperature
Operating Humidity
|
Outdoor (Wireless Keypad)
-40oC~60oC(-40oF~140oF)
10%~9%RH
|
|
Physical
Dimensions
Unit Weight
Shipping Weight
|
ABS Shell
Wireless Keypad: L134 x W48 x D25(mm)
Mini Controller: L85 x W50 x D25(mm)
Wireless Exit Button: L80 x W38 x D15(mm)
Wireless Keypad: 150g
Mini Controller: 62g
Wireless Exit Button:34g
300g
|
